27 Gallon Tote (Lengthwise) Storage Rack Plans PDF

27 Gallon Tote (Lengthwise) Storage Rack Plans PDF

Regular price $7.99 USD
Regular price Sale price $7.99 USD
Sale Sold out
Shipping calculated at checkout.
Size (WxH)

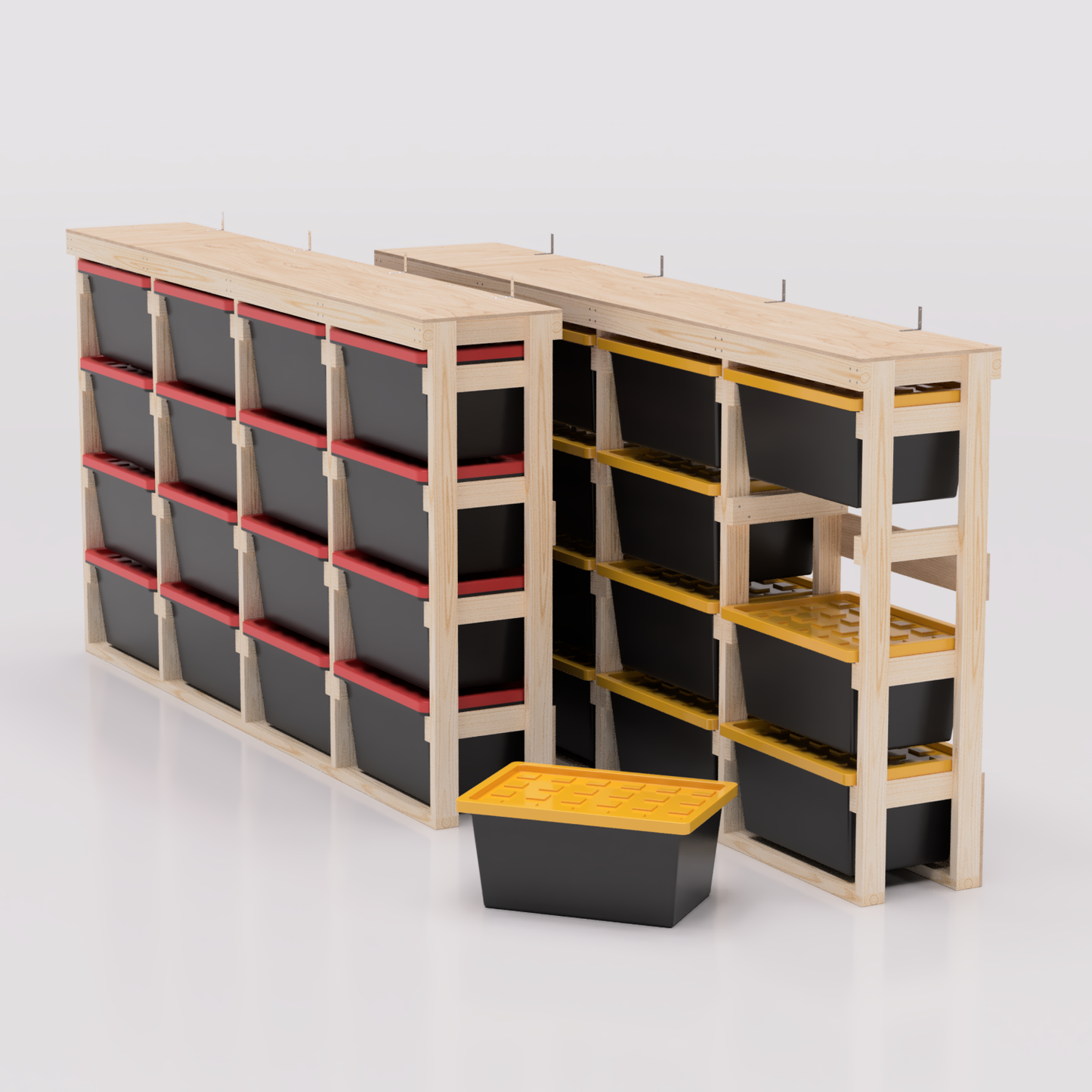

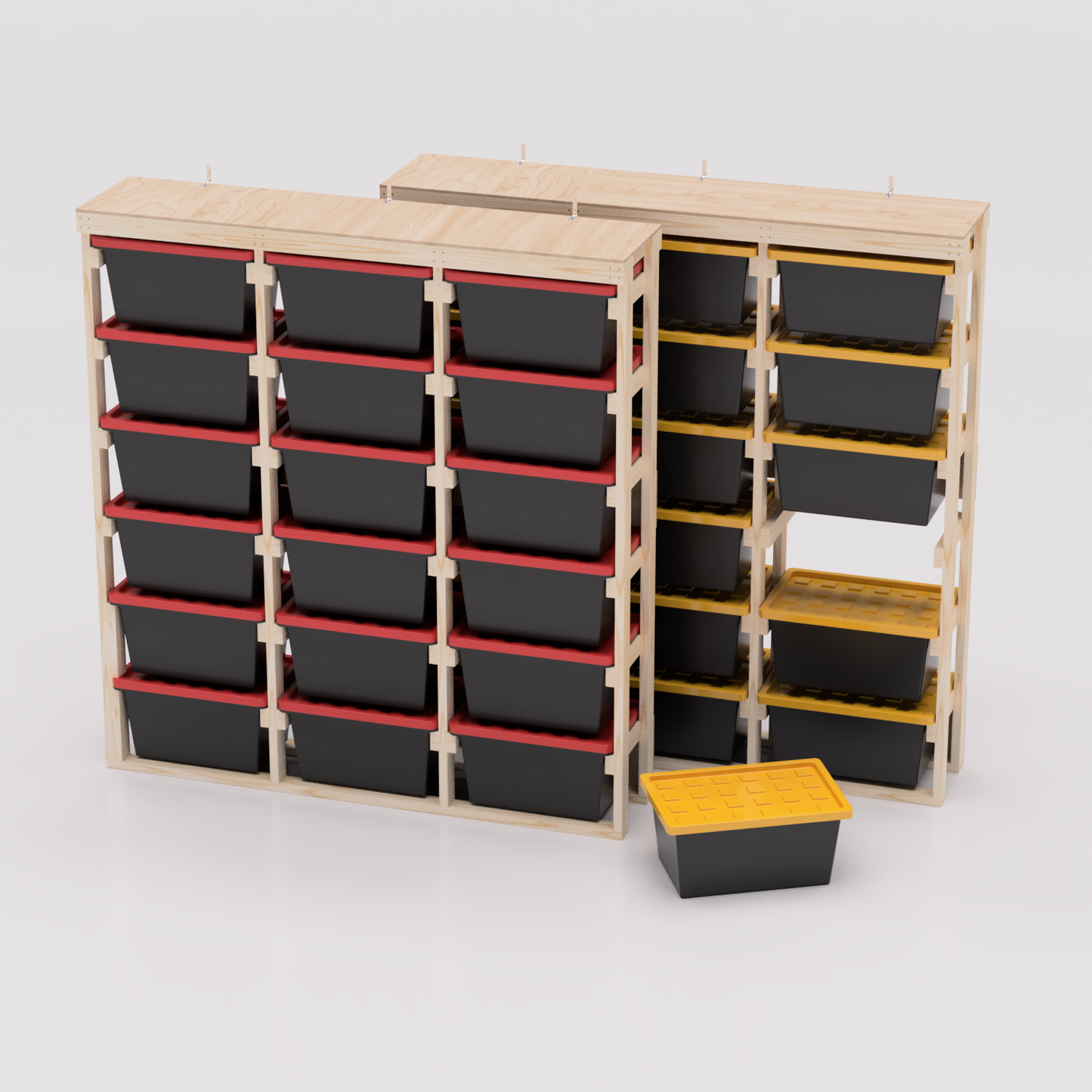

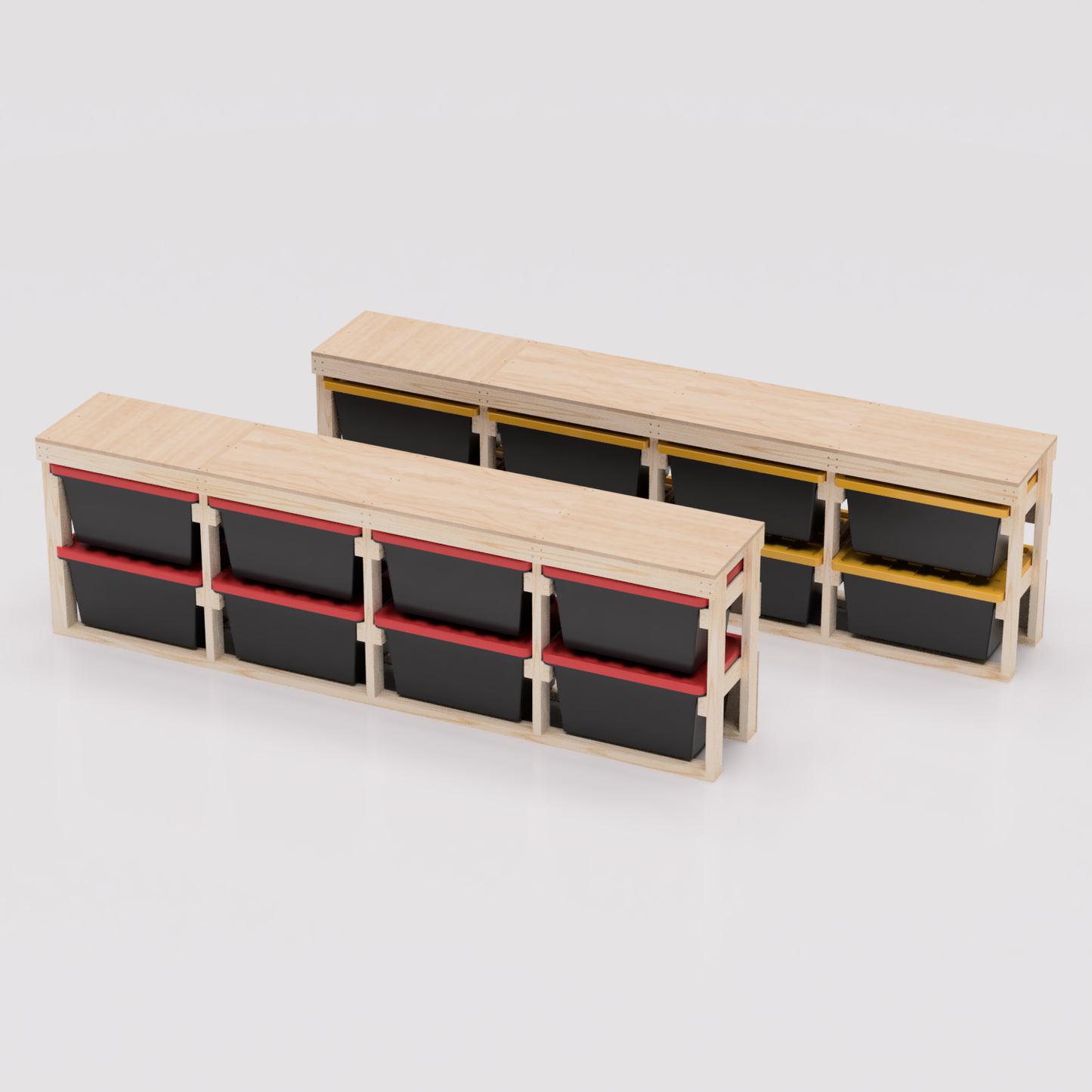

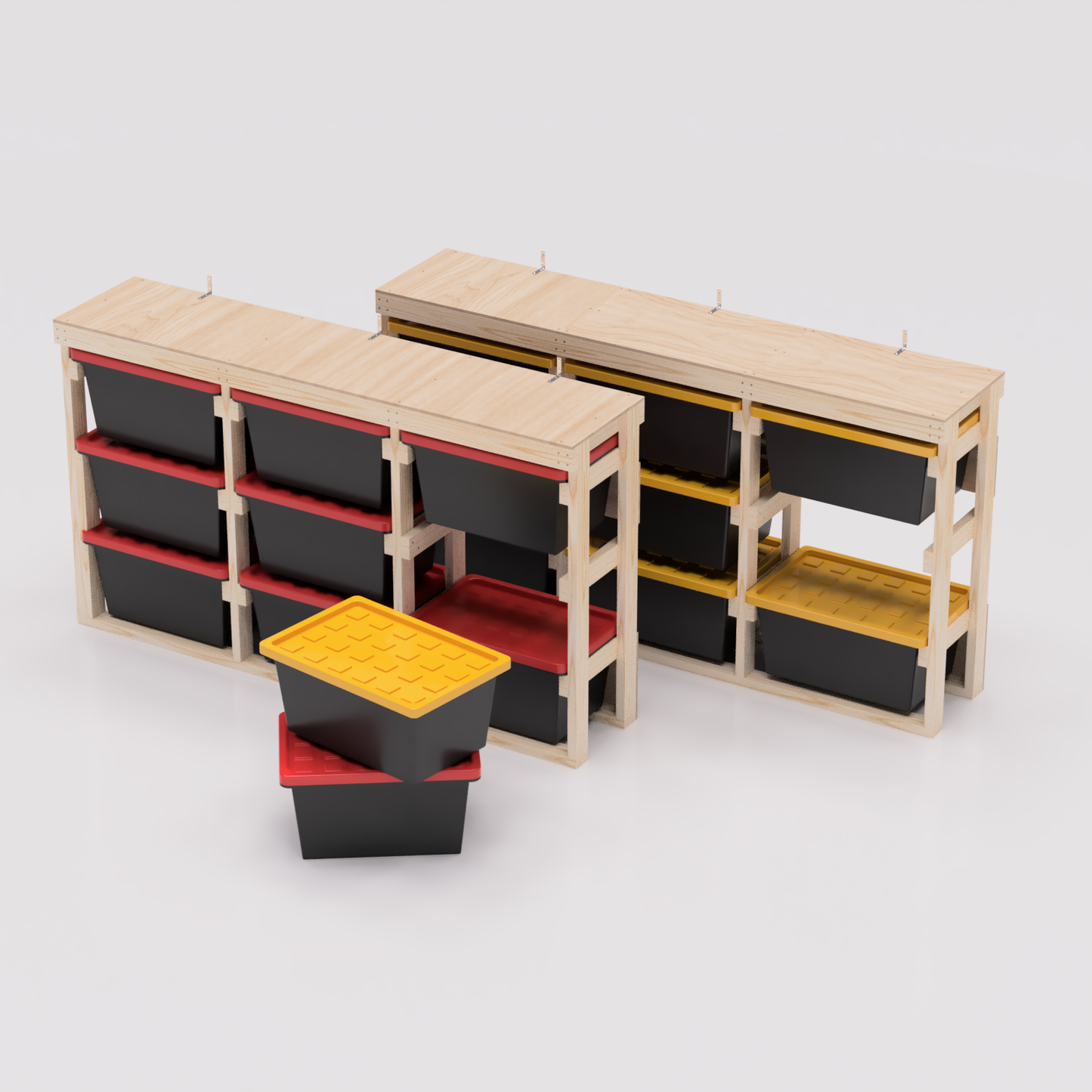

Lengthwise DIY 27 Gallon Tote Storage Rack Workbench Plan. Holds 27 gallon totes Lengthwise with additional shelf on top.

27 gallon totes are flush and do not stick out in front of the rack. Allows for easy access to storage totes and keeps them off the ground, making it easy to keep your garage clean.

Purchase includes PDF with detailed step by step assembly instructions, Cut lists for all materials and shopping list with pricing and links to items.

Measurements are imperial (inches)

Each size includes 2 versions compatible with the following totes: L x W x H

30.6" x 20.6" x 14.3"
- Lowe's 27 Gallon (Yellow / Black)
- Sam's Club (Yellow / Black)
- Tractor Supply 27 Gallon (Yellow / Black)
- Walmart 27 Gallon (Red / Black)

28.5" x 19.6" x 15.2"
- Home Depot 27 Gallon (Red / Black)
- Home Depot 27 Gallon (Yellow / Black)
- Sam's Club 27 Gallon (Red / Black)

Please note this is a digital download only. No wood or tools are provided. No physical item will be sent.

Cost estimates include (Lumber, Screws and brackets)
**Cost estimate based off Lowe's pricing as of October 2024

Built with 2x4's and plywood.

Tools Needed:
- Circular Saw
- Tape Measure
- Drill

- Speed Square
- Countersink Bit

This is an instant download. Please check for an email, with a link to download, after your purchase.

Hudson's Timber LLC has no affiliation with Dewalt, Home Depot, Costco, Lowe's, Sam's Club, Tractor Supply, Ace Hardware, Do it Best Hardware, Office Depot, Office Max, Menards or Walmart

Terms of use:
Digital Products, including any support documents are for personal use only and cannot be shared or sold. You agree not to copy, reproduce, redistribute, alter, modify, share with third parties, display the content publicly, or create derivative works of Digital Products. You may create Physical Products using any Templates included in Digital Products for business use without attribution to Hudson's Timber LLC.

Please feel free to message me, if you have any questions.
