27 Gallon Tote Rack - Holds 8 HDX Totes
27 Gallon Tote Rack - Holds 8 HDX Totes

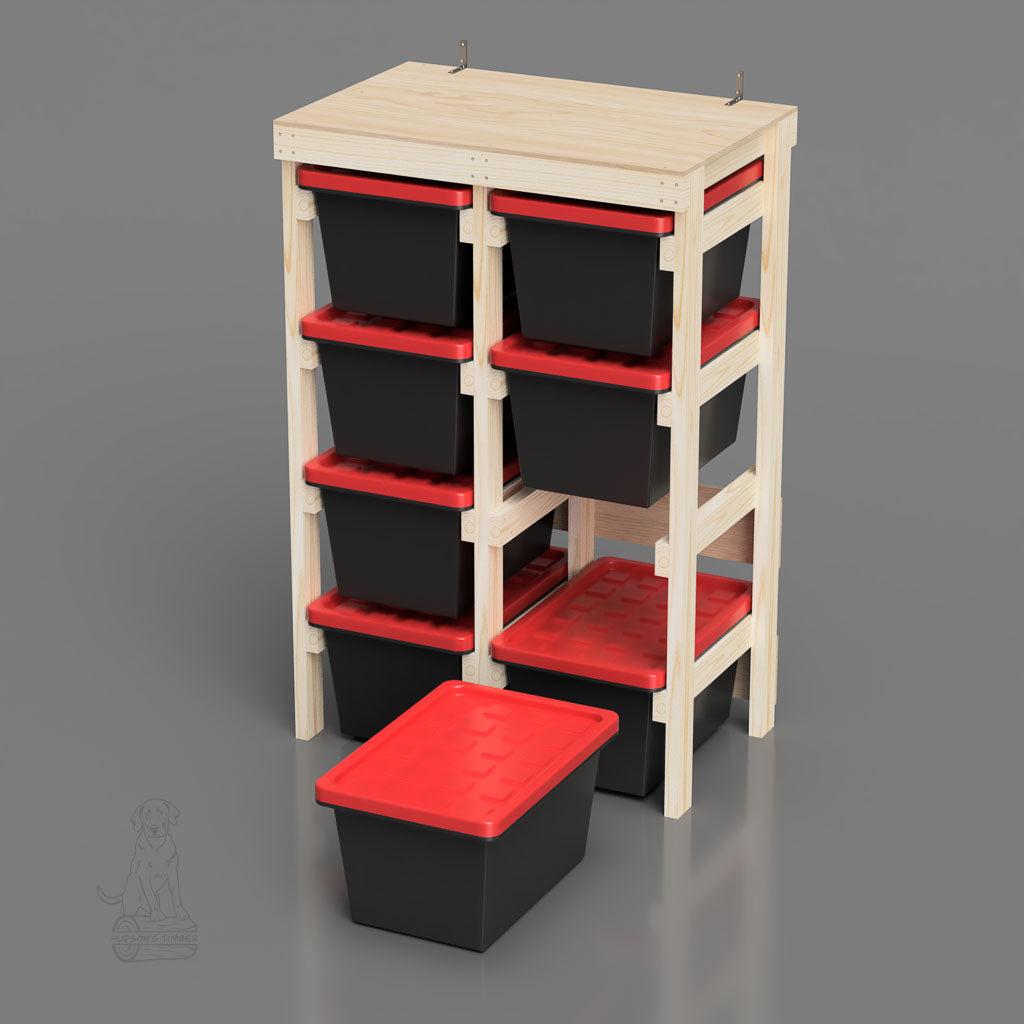

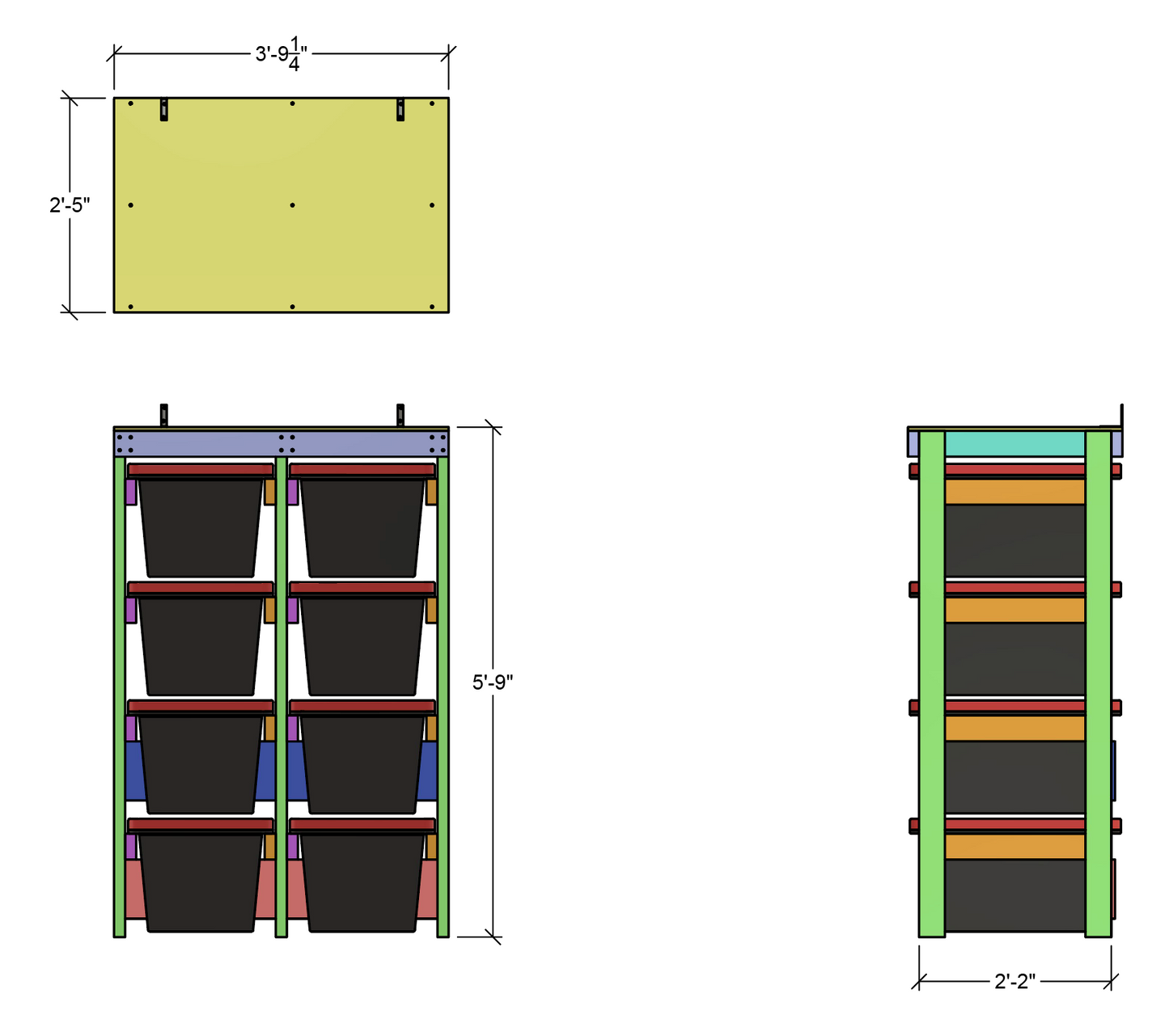

Garage Storage works with HDX 27 Gallon Tote Storage Rack Plan. Holds 8 Totes with additional shelf on top. Overall dimensions of 3' 9-1/4" wide, 2' 5" deep and 5' 9"" tall. 27 gallon totes are flush and do not stick out in front of the rack. Allows for easy access to storage totes and keeps them off the ground, making it easy to blow dirt out of your garage. Sturdy Design is easy to build with minimal tools. Includes 13 page PDF with detailed assembly instructions, Cut lists for all materials and shopping list with pricing and links to items.
Measurements are imperial (inches)
Designed to be compatible with 8 of the yellow & black or Red & Black 27 gallon HDX storage totes sold at Home Depot. Designed for totes measuring: H 15.27", W 19.61", D 28.55"
Please note this is a digital download only. No wood or tools are provided. No physical item will be sent.
Cost estimate is $106.33 (Lumber, Screws and brackets)
**Cost estimate based off Home Depot pricing as of March 2024
Built with 2x4's and 1 sheet of plywood.
Tools Needed:
- Circular Saw
- Tape Measure
- Drill
Optional Tools:
- Speed Square
- Countersink Bit
This is an instant download. Please check for an email, with a link to download, after your purchase.
Hudson's Timber LLC has no affiliation with The Home Depot, Dewalt, Lowe's, Sam's Club or Walmart
Terms of use:
Digital Products, including any support documents are for personal use only and cannot be shared or sold. You agree not to copy, reproduce, redistribute, alter, modify, share with third parties, display the content publicly, or create derivative works of Digital Products. You may create Physical Products using any Templates included in Digital Products for business use without attribution to Hudson's Timber LLC.
Please feel free to message me, if you have any questions.
