Hudson's Timber

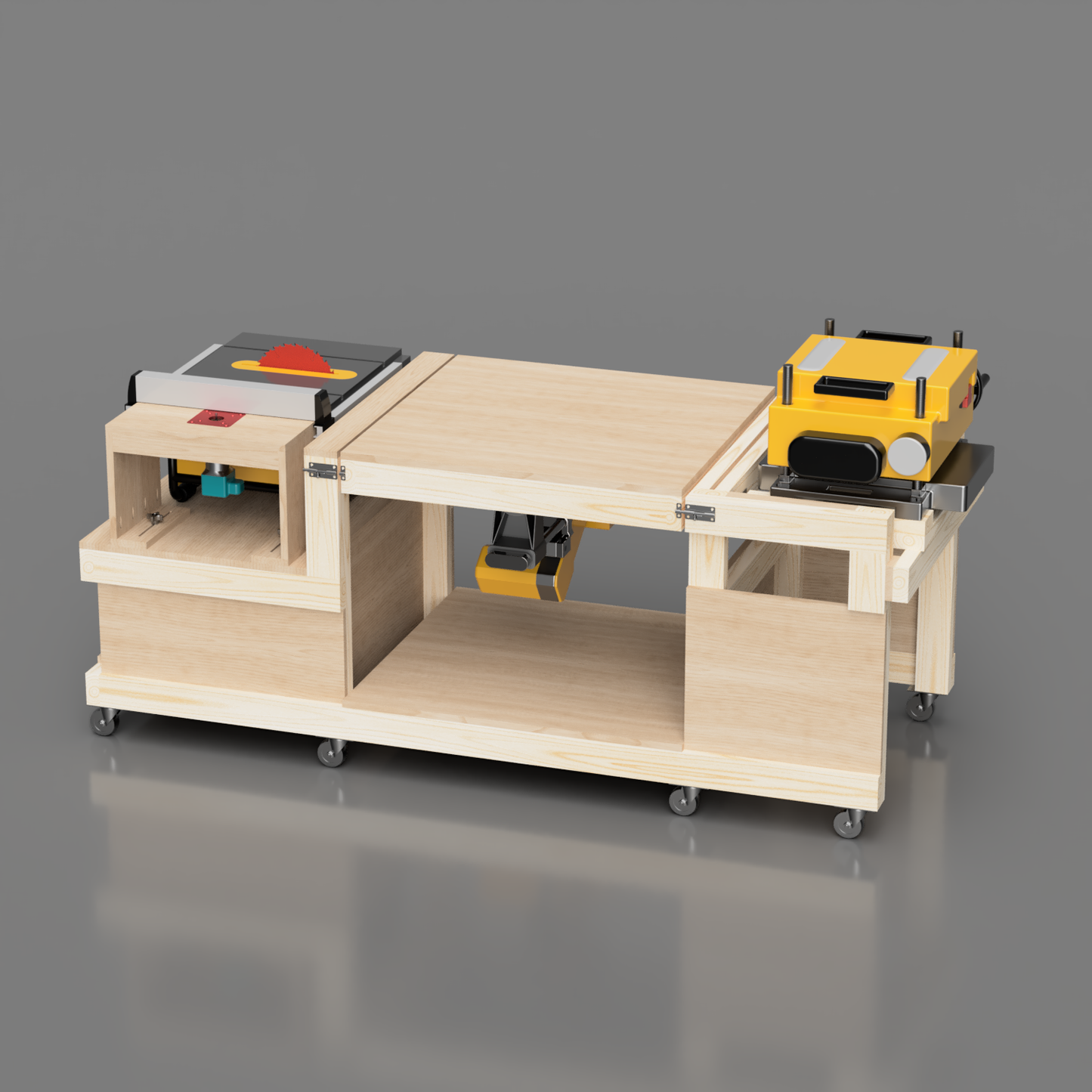

4 Tool Mobile Flip Top Workbench

4 Tool Mobile Flip Top Workbench

Regular price $15.00 USD
Regular price Sale price $15.00 USD
Sale Sold out
Shipping calculated at checkout.

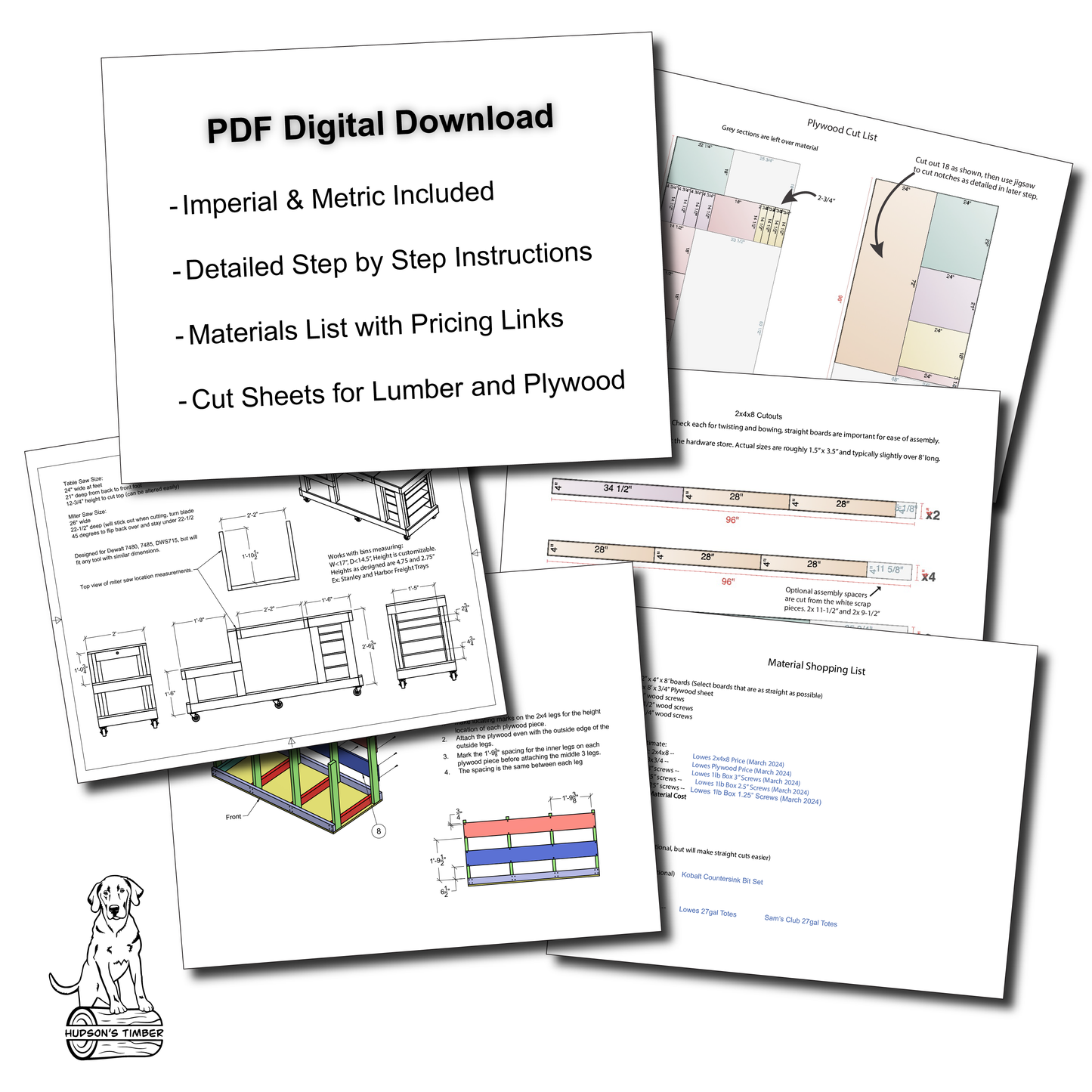

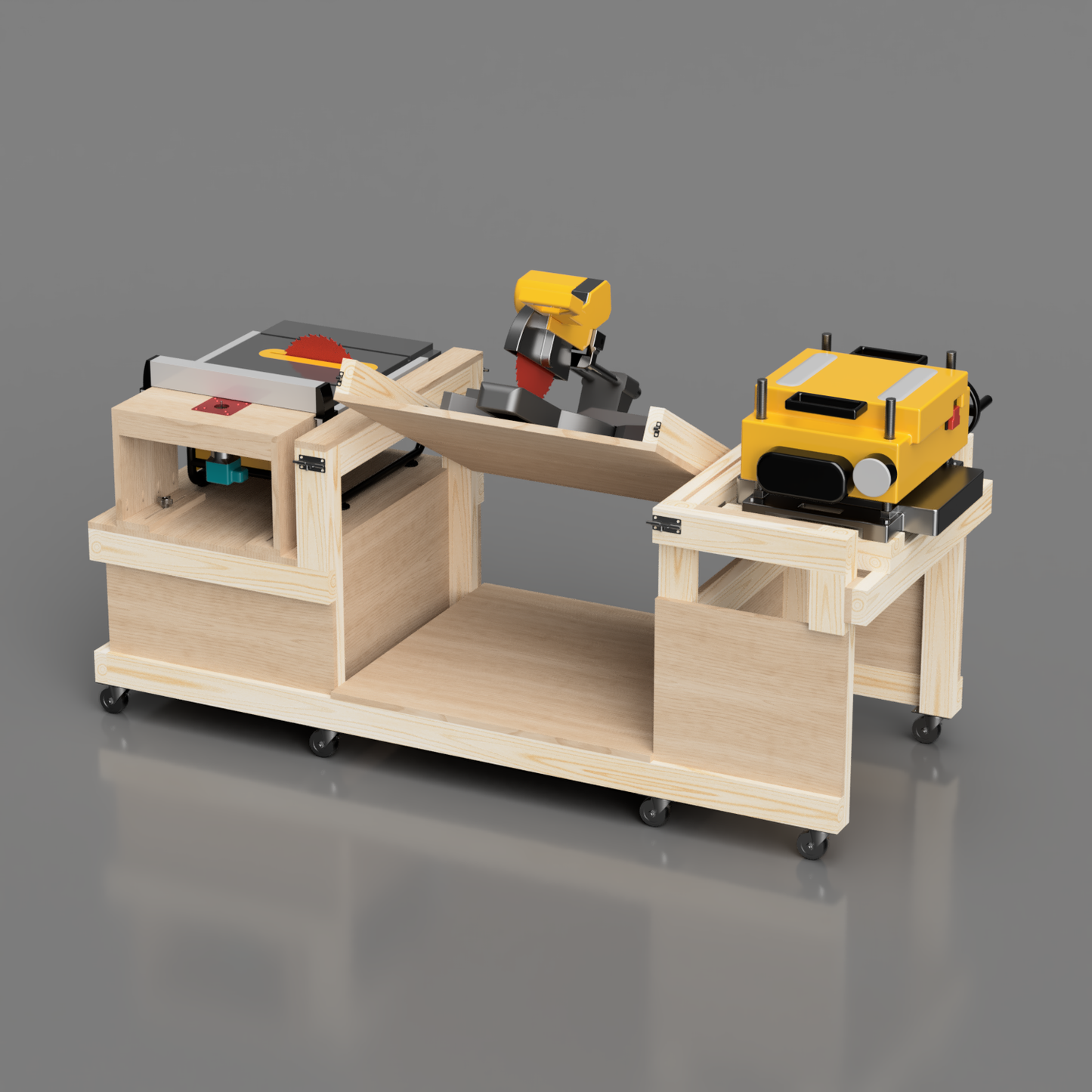

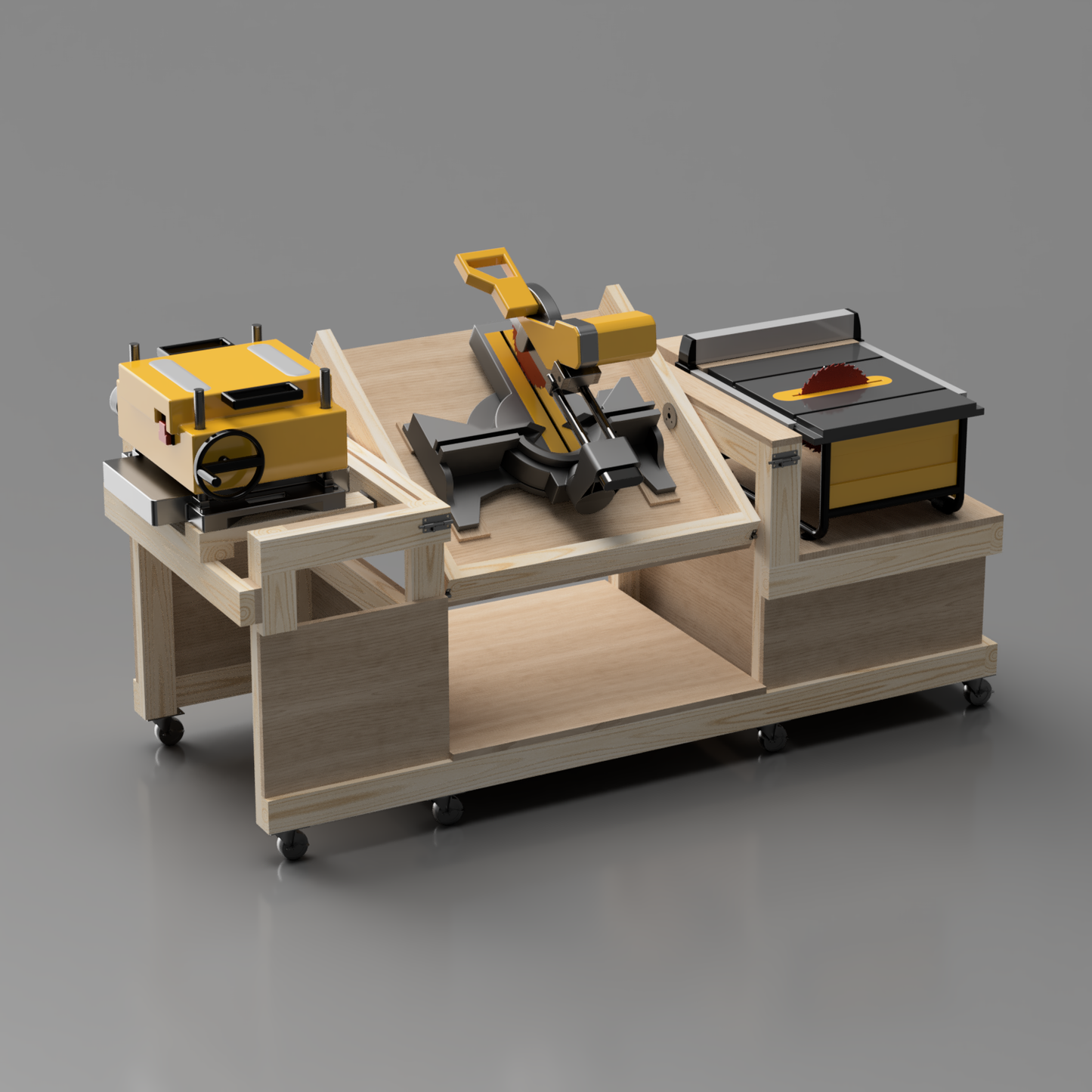

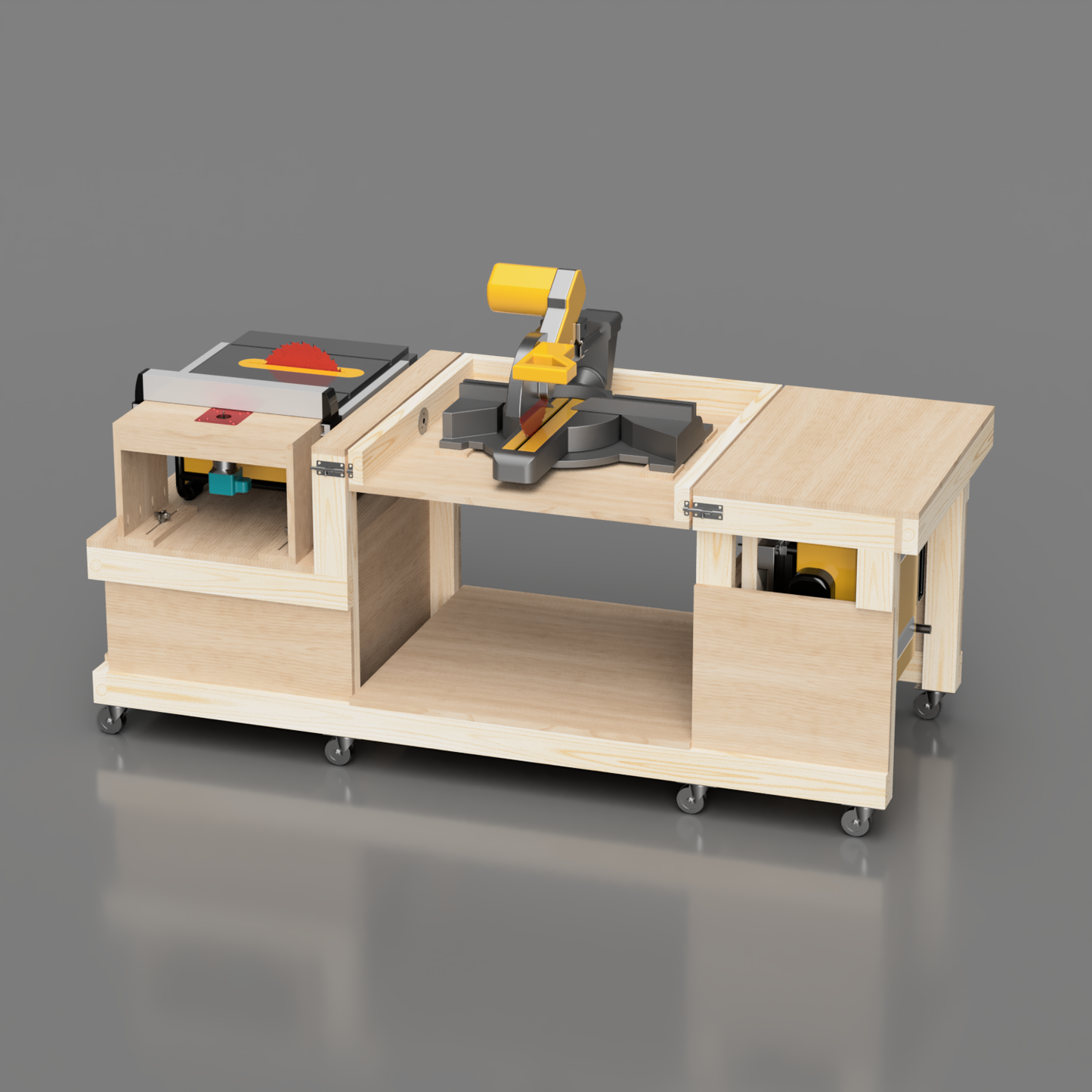

Flip Top Miter Saw Workbench Plans built for Table Saw with built in out feed table. Router table that works with table saw fence. Flip top miter saw and flip up mount for a planer. Includes detailed PDF plans, Cut lists for all materials, shopping list with links to products and pricing.

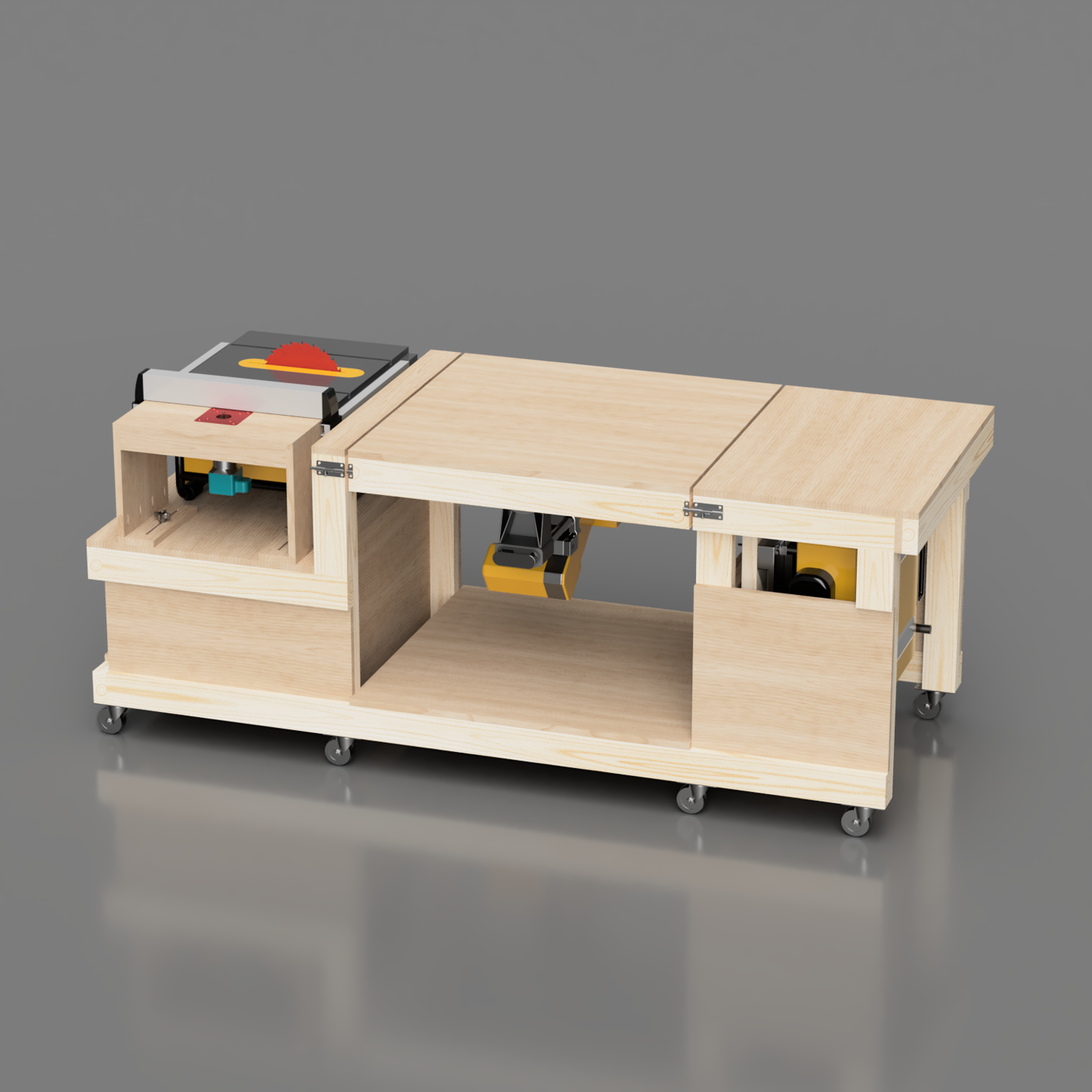

Provides easy access to use all 4 tools, while keeping a compact form factor to minimize space when not in use. Perfect for small shops, 1 car garage shops or sheds.

Cost to build estimated at $354.28 using box store pricing as of July 2024.

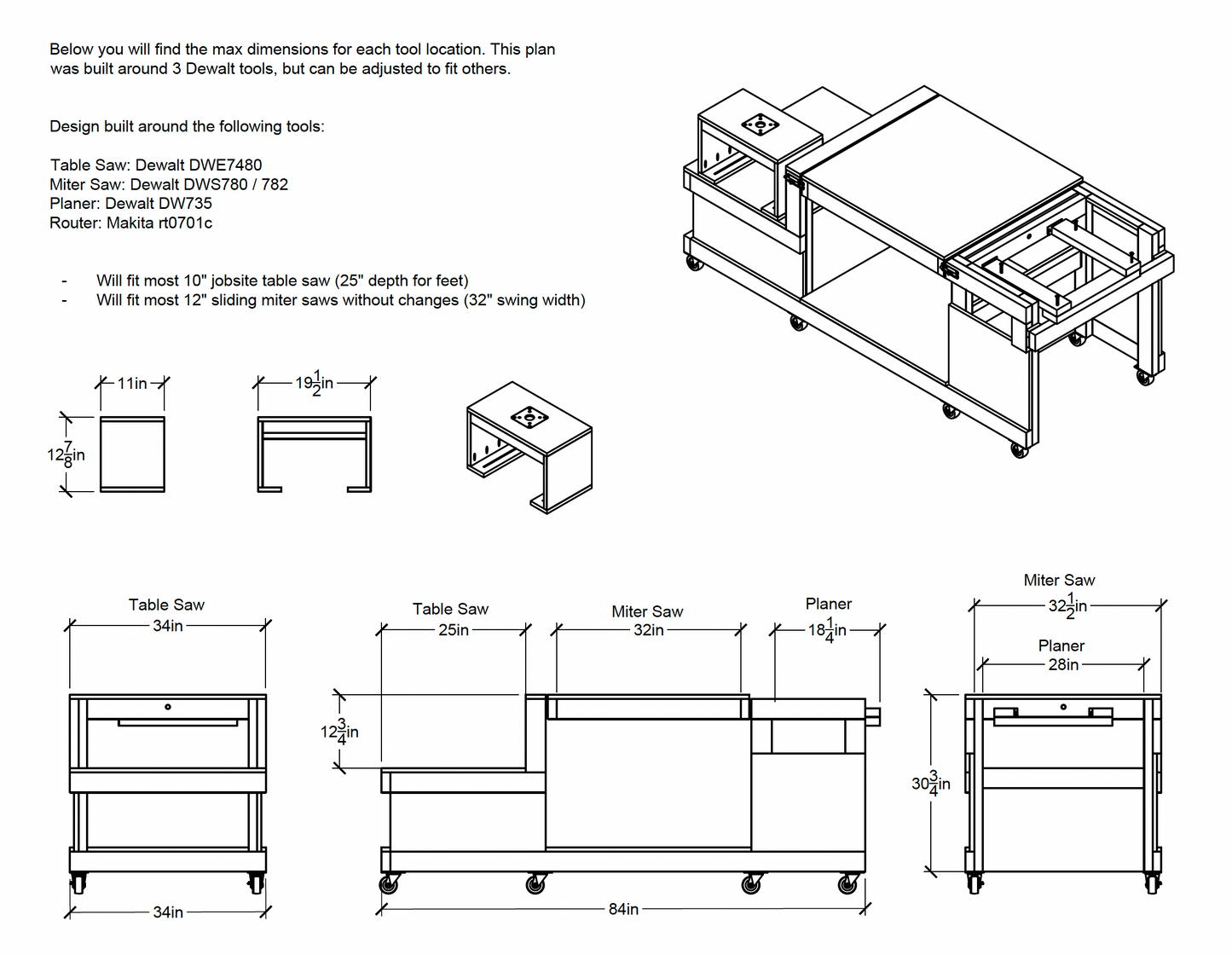

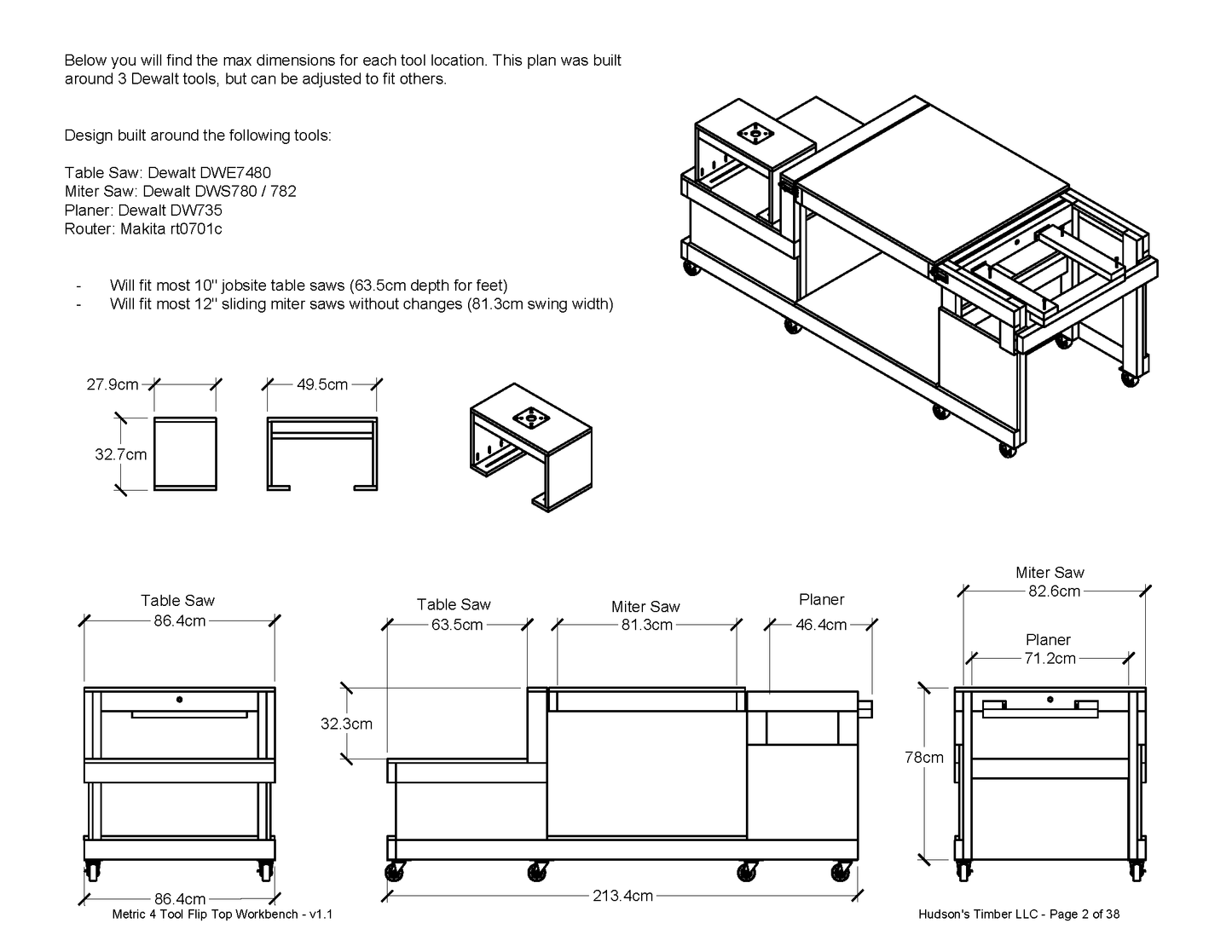

Overall Dimensions: 86.25" L x 34" W x 34.25"H (including 3.5" wheels)

Workbench is modeled for:
Table Saw: Dewalt DWE7480 (7491 will fit as is or you can extend router top to fill space between fence tracks)
Miter Saw: Dewalt DWS780 / DWS782
Planer: Dewalt DW735
Router: Makita 0701c (can fit any similar size compact router)

Can be modified to fit additional tools and brands (includes instructions on how to modify)
Fits 10" Table Saws with a depth of 25" from back most point to front foot. (Can be extended easily)
Fits 12" Miter Saws with a max width of 32"
Fits Planers less than 28" wide

Max tool footprint without modifications:
Table Saw: 25" deep x 34" wide
Miter Saw: 22.5" deep x 32" wide
Planer: 18.25" deep x 28" wide

Tools Needed:
Table Saw
Miter Saw or Skill Saw
Jig Saw (used for notching 1pc of plywood, could use hand saw)
Router
Template bit for router
Tape Measure
Drill
Drill bit set
Phillips Screw driver
Adjustable wrench or wrench set
Countersink bit
8’ straight edge or chalk box for plywood cuts. If you don't have one, then choosethe straightest 2x4x8 and use it to mark plywood cuts first. 2nd option would be to use the edgeof the second sheet of plywood.

This is an instant download. Please check for an email, with a link to download, after your purchase.

Hudson's Timber LLC has no affiliation with Home Depot, Dewalt, Lowe's, Sam's Club or Walmart

Terms of use:
Digital Products, including any support documents are for personal use only and cannot be shared or sold. You agree not to copy, reproduce, redistribute, alter, modify, share with third parties, display the content publicly, or create derivative works of Digital Products. You may create Physical Products using any Templates included in Digital Products for business use without attribution to Hudson's Timber LLC.

Please feel free to message me, if you have any questions.
