Wooden Valet Tray CNC Plans
Wooden Valet Tray CNC Plans
Looking to use your CNC to make trays, but aren't sure how to setup your files? These detailed PDF plans include the steps and toolpaths needed to make a matching set of Valet Trays.

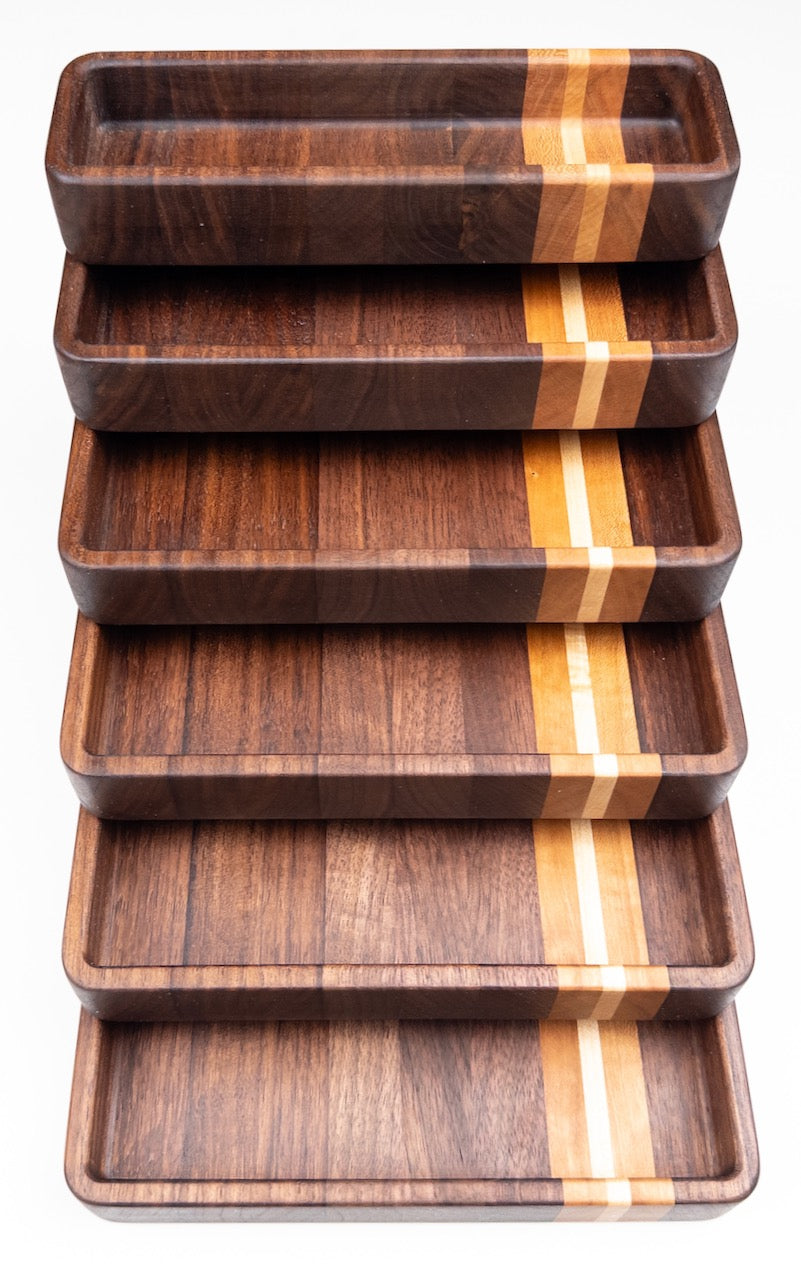

Tray Sizes are in inches W" x L" = 2.5x8, 4x8, 6x8, 8x8, 10x8, 12x8

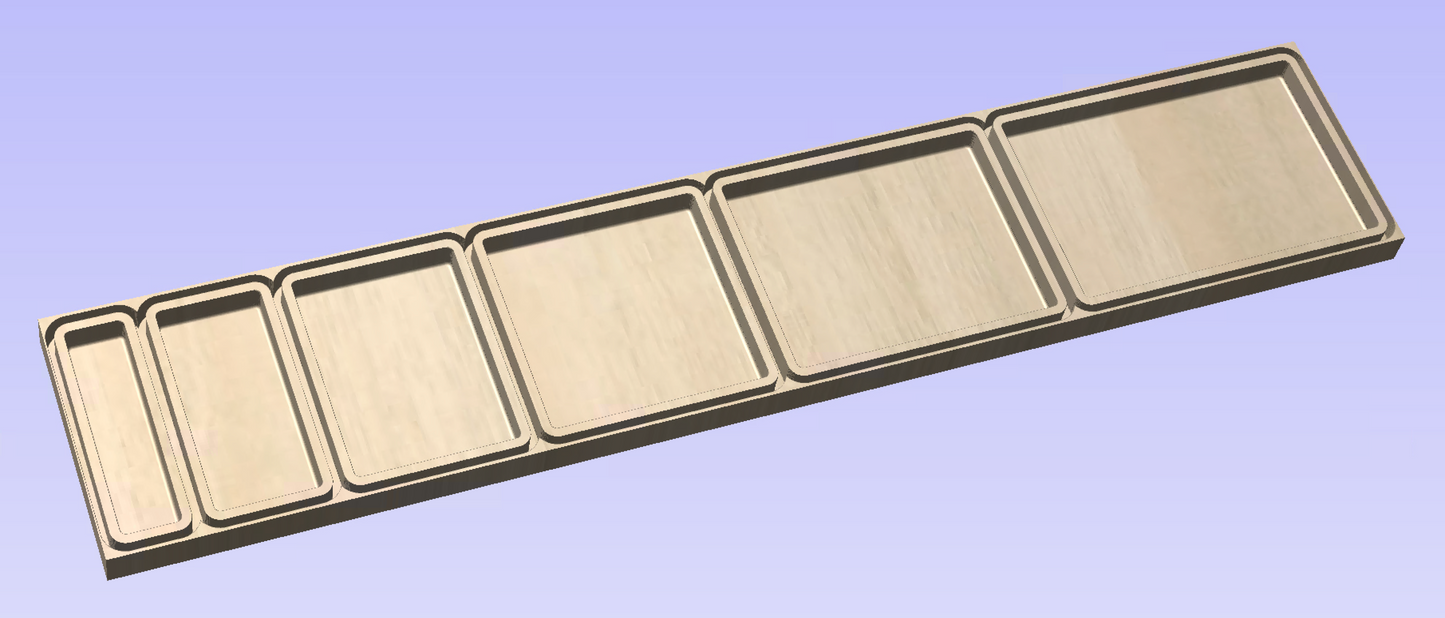

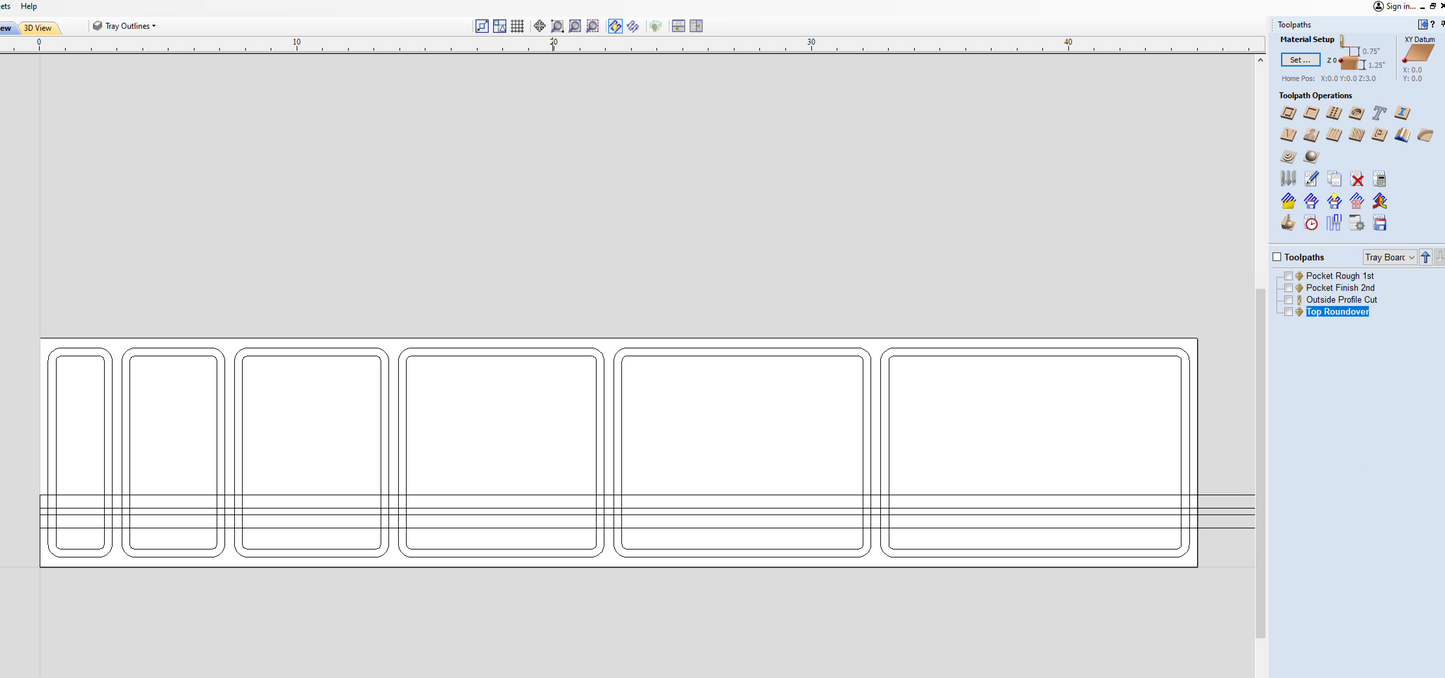

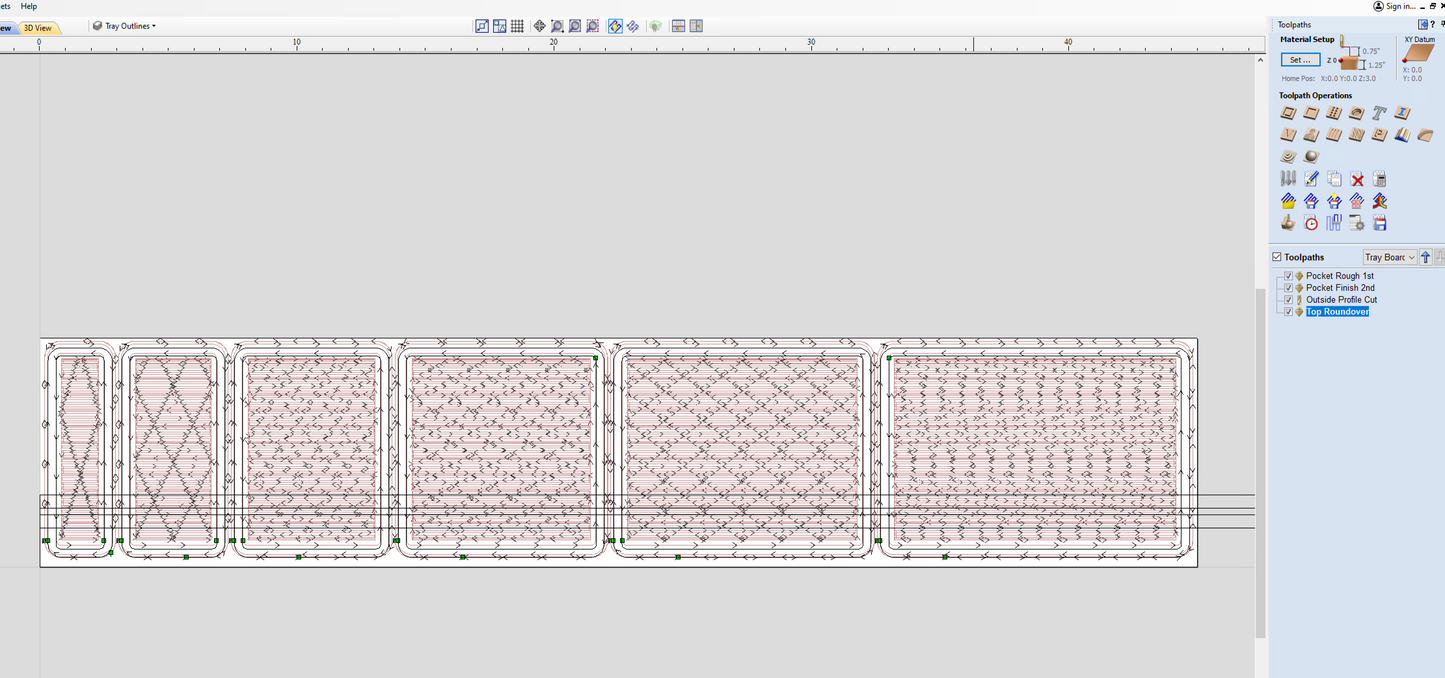

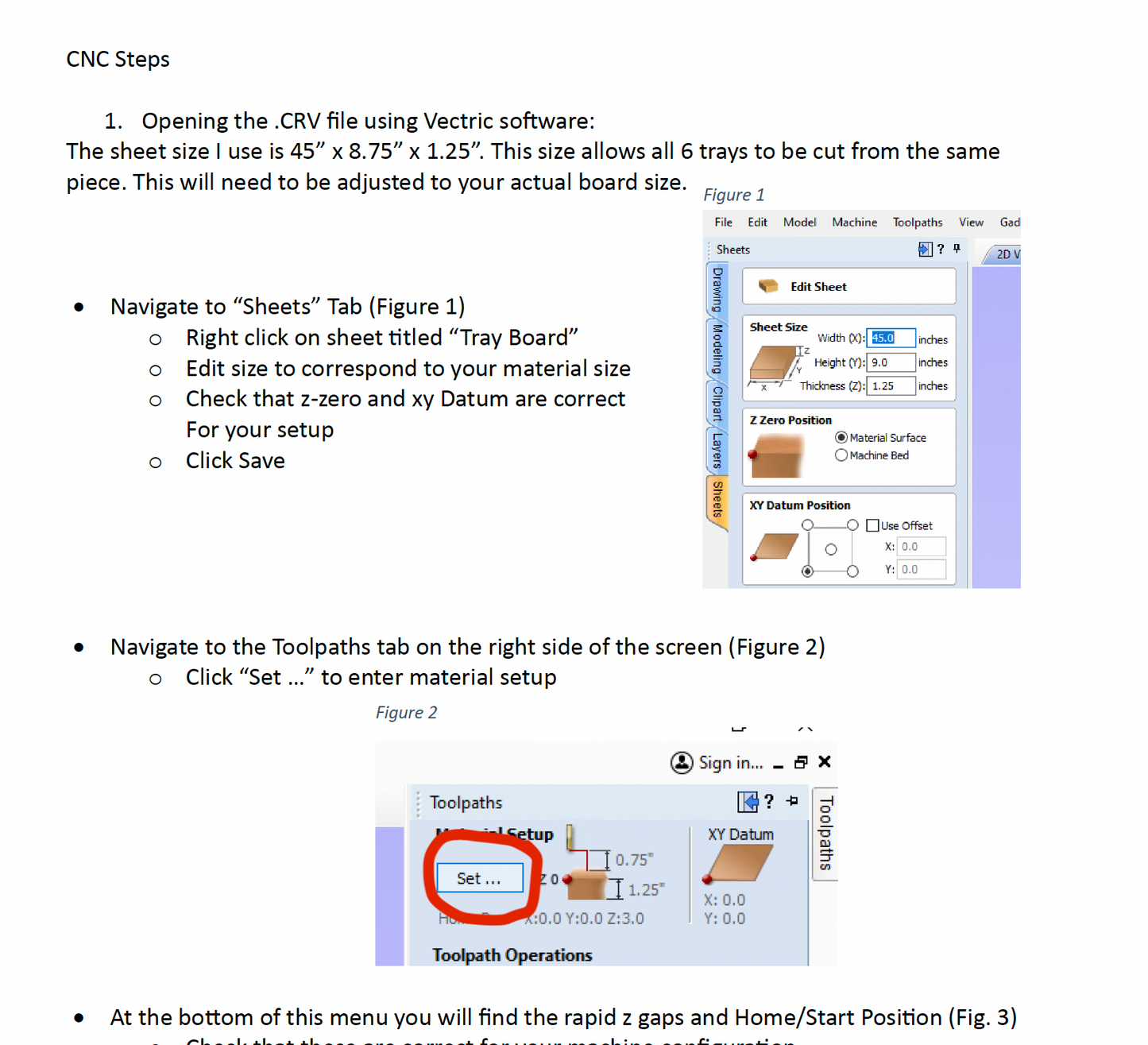

You will receive the Vectric Vcarve .crv file setup to cut all 6 size trays on one board. Includes toolpaths needed for pockets, perimeter cutout and top roundover. PDF Instructions including toolpath screen shots and setup instructions / explanations. Additionally, I provide .dxf and .svg vectors for the design.
All files will be contained in one .zip file.
Please note this is a digital download only. No wood or tools are provided. No physical item will be sent.
You will need to purchase milled lumber or have tooling to Plane / Rip the hardwood stock to make this design. I use 4/4 lumber to make these. Overall stock size needed to cut out all 6 trays, at one time, is 45" x 8.75" x 1.25".
Bits used are listed below and links are provided in instructions:
Whiteside 1370 Bowl Bit
Whiteside ru2100 1/4" up cut
Amana 56125 1/8" point round over
This is an instant download. Please check your email for a link to download, after your purchase.
Would you like the physical product instead? Check out our listing for the completed trays.
Terms of use:
Digital Products, including any support documents are for personal use only and cannot be shared or sold. You agree not to copy, reproduce, redistribute, alter, modify, share with third parties, display the content publicly, or create derivative works of Digital Products. You may create Physical Products using any Templates included in Digital Products for business use without attribution to Hudson's Timber LLC.
Please feel free to message me, if you have any questions.
